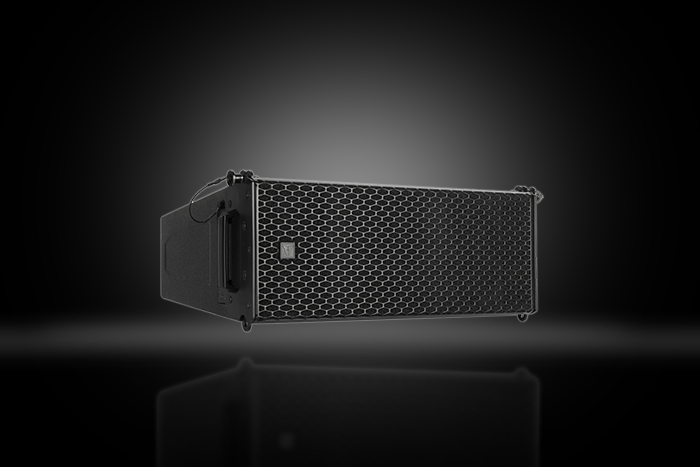

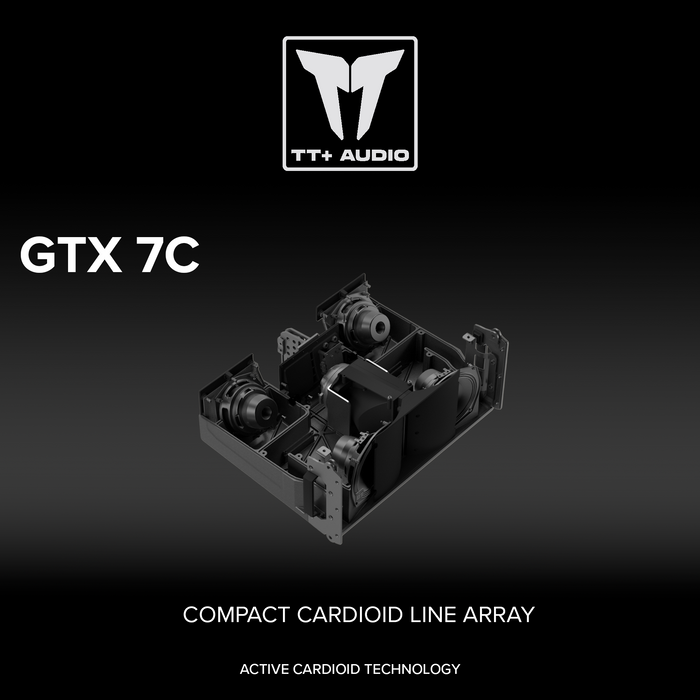

GTX 7C Compact Cardioid Line Array

TT+ Audio Stand: N-D20
  • GTX 7C Compact Cardioid Line Array
  • GTX 7C Compact Cardioid Line Array
GTX 7C Compact Cardioid Line Array GTX 7C Compact Cardioid Line Array

The GTX 7C is an advanced line array module engineered for precise, high-performance sound reinforcement in demanding applications. Featuring digitally controlled directivity, it surpasses traditional cardioid solutions by integrating advanced acoustical design with active DSP optimization. The front and rear speakers are independently powered through separate audio channels, with extensive digital processing provided by the XPS power amplification platform. Each module achieves an average rear attenuation of 22 dB up to 600 Hz and a maximum SPL of 140 dB. An onboard, passive, phase-optimized crossover at 900 Hz ensures seamless frequency distribution while FiRPHASE and BMC processing deliver precise attenuation in a broader frequency range than competing systems. Available in full black or white coating.

Key Features

  • 140 dB max SPL

  • 120° x 10° Linear Resistive Waveguide

  • 22 dB rear attenuation (average)

  • Shock-absorbing, polyurea-coated PU enclosure

  • 2 × 7" front and 2 × 5.5" rear neodymium woofers

  • 3.0" titanium dome, neodymium compression driver

  • 2 × SpeakON STXX IP54 heavy-duty metal connectors

  • Designed to operate with XPS 16K amplifier (8 modules per amp unit)
