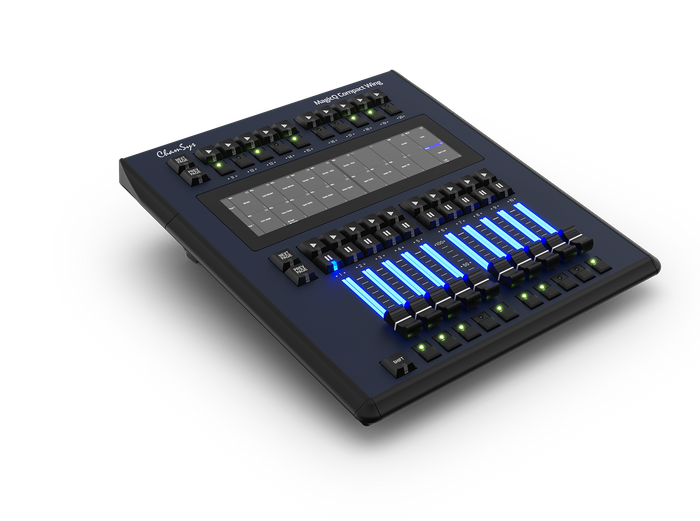

MagicQ Compact Wing

The new MagicQ Compact Wing enables MagicQ users to elegantly and efficiently expand their number of available physical playbacks.

Styled to pair with MagicQ Compact consoles, this versatile expansion wing is compatible with all current MagicQ Console and PC Systems.

Feature highlights include:

20 Playbacks with 10 Fader and 10 Executor playbacks

Large full-colour high-resolution display for fully electronic playback legending

Scalable system expansion via integrated USB hub for connecting multiple wings

In the fader section, each playback features Flash, Go and Pause buttons. The executor playback section includes Select and Flash buttons for each playback. Both playback sections can independently page through multiple playback pages.

In addition to the USB connections found on the rear panel are a dimmable working light socket and a Neutrik Powercon connector that locks securely into the wing’s built-in power supply.

With illuminated fader tracks, dual playback sections, and a balanced, portable form factor, MagicQ Compact Wing adds tactile playback control to any MagicQ system while perfectly matching the visual appeal of our MagicQ Compact series. Ideal for use in touring and events, as well as installation into theatres, schools, clubs, broadcast studios or any venue looking for modular expansion of existing MagicQ systems.
