N-Series Digital Wireless System
)
)
N-Series is a fully digital, true diversity, wideband system that features the renowned DPA-quality sound. The full N-Series package currently includes a dual channel receiver, handheld transmitters, bodypack transmitters, and an integrated software solution that brings everything together.

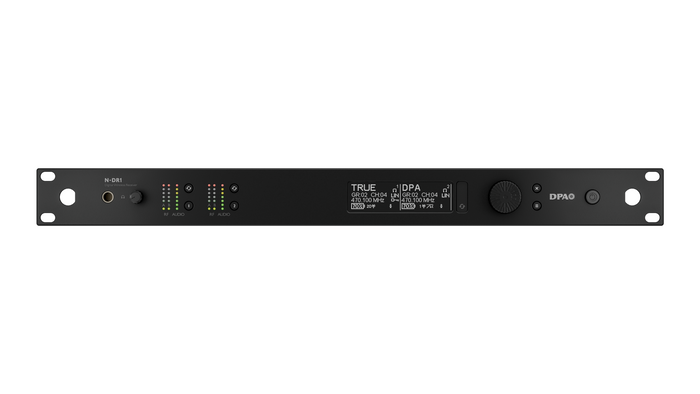

N-DR1 Digital Dual Channel Receiver
N-Series offers the N-DR1 Digital Dual Channel Receiver, designed with ease-of-use in mind and packed with high-end functionality.
Key features:
- Wideband - 470 MHz to 870 MHz bandwidth in each unit
- Sleek front panel design offers and easy overview of features
- LAN control with built-in switch for loop through
- Dante® Switched and Redundancy modes
- Antenna inputs with power for active antennas and active loop through
- Analog output (optional)
- 126 dB true dynamic range

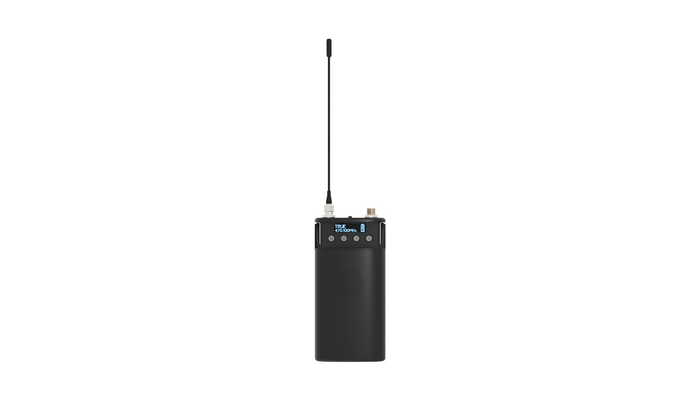

N-BP1 Bodypack transmitters
N-Series offers two uniquely designed bodypack transmitters:- N-BP1-90 – compatible with DPA mics with MicroLock®
- N-BP1-03 – compatible with mics using 3-pin LEMO connector
Key features:
- Wide frequency range: from 470 MHz to 870 MHz
- Contoured shape that fits the body comfortably
- 8+ hours of operation with standard AA batteries
- DPA Rechargeable Battery Pack (optional)
- Easy battery loading

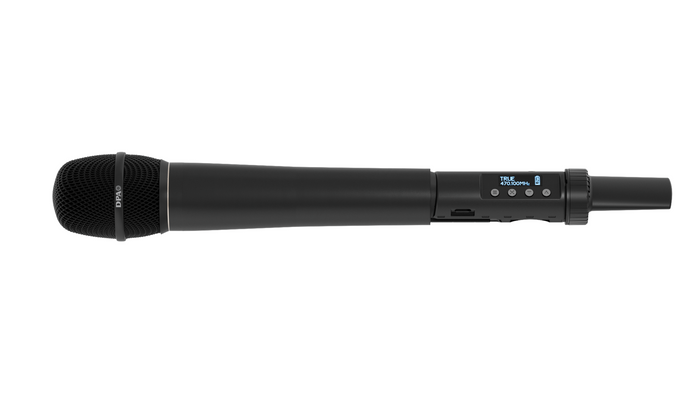

N-HH1 Handheld transmitters
N-Series is best used with DPA’s high-end vocal mics.
d:facto™ 4018V Softboost Vocal Microphone
d:facto™ 4018VL Linear Vocal Microphone
2028 Vocal Handheld Microphone
2024 Vocal Microphone (new)
Key features:
- Wide frequency range: from 570 MHz to 870 MHz
- Slim, light design sits balanced in the hand
- No loose parts
- 8+ hours of operation with standard AA batteries
- DPA Rechargeable Battery Pack (optional)
- Easy battery loading
- Industry standard SL1 thread supports
DPA Audio Controller software allows remote control and monitoring of the system via either PC or Mac. It also features a comprehensive frequency analyzer that covers the entire bandwidth of the system – 470 to 870 MHz.
The software operates in two primary windows: Monitor & Control and Frequency Management, which contains the spectrum analyzer.
The DPA Audio Controller is an intuitive, easy-to-use control package, which doesn’t need lengthy training to get started with.
