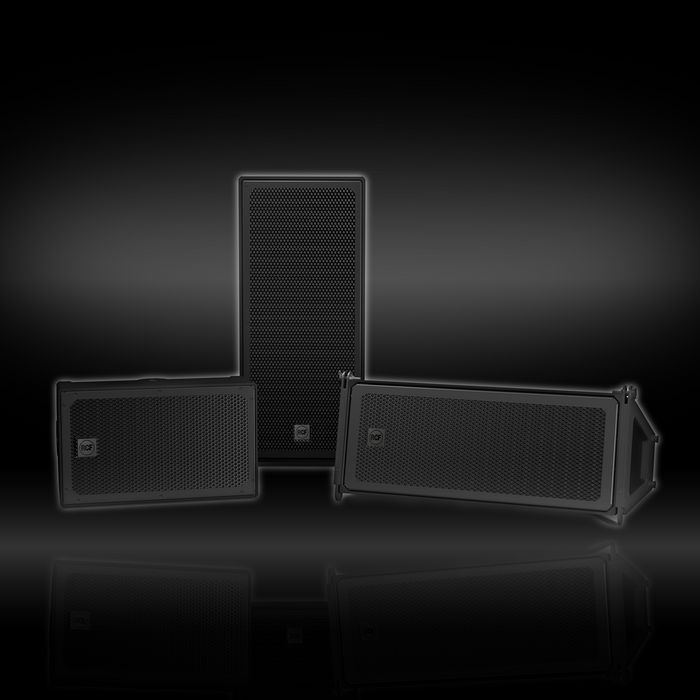

RCF X Series
ALL-WEATHER PERFORMANCE.
X Series is designed for permanent installations
requiring high-output sound in challenging environments. From stadiums and
sports venues to outdoor hospitality and leisure spaces, each cabinet is
engineered to deliver clarity and coverage, indoors or out.
Constructed from rigid structural polyurethane, the
enclosures offer excellent resistance to UV corrosion and impact. With IP55
certification, an aluminium front grille with water-repellent backing and
corrosion-treated brackets or fittings the X Series is built for lasting
performance in exposed settings.
All models feature RCF Precision Transducers and optimised
waveguides to maintain consistent directivity and intelligibility across large
areas and are available in black or white.
X 40
- 142
dB max SPL
- 1200
W RMS / 4800 W peak power handling
- 10”
neodymium woofer, 3.0” voice coil
- 1.4”
neodymium compression driver, 4.0” voice coil
- 110°
× 60° coverage angle
- 8
ohm nominal impedance
X 28L
- 140
dB max SPL
- 800
W RMS / 3200 W peak power handling
- 2 ×
8” neodymium woofers, 2.5” voice coils
- 1.4”
neodymium compression driver, 3.0” voice coil
- 110°
× 20° coverage angle
- 8
ohm nominal impedance
X 08
- 128
dB max SPL
- 400
W RMS / 1600 W peak power handling
- 8”
neodymium woofer, 2.5” voice coil
- 1”
neodymium compression driver, 1.75” voice coil
- 100°
× 100° coverage angle
